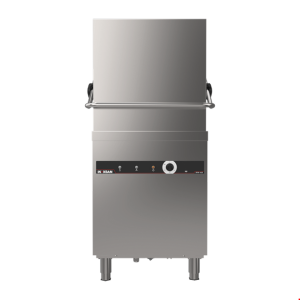

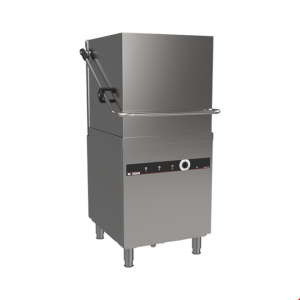

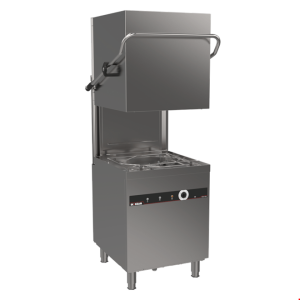

İnoksan Giyotin Tip Bulaşık Yıkama Makinesi, Drenaj(Tahliye) Pompalı, INO-BYM102ST

GUILLOTINE TYPE DISHWASHER - WITH DISCHARGE PUMP

İnoksan Guillotine Type Dish Washer, With Drainage Pump, INO-BYM102ST

The body of the machine and all parts in contact with water are made of AISI 304 quality 18/8 Cr-Ni stainless steel sheet.
Temperature indicators are 3 digits; It can be adjusted according to °C and °F.
It has 3 different washing programs according to the type of dish and the degree of soiling.
Washing - rinsing times and temperatures can be changed according to the user's preference from the electronic card service menu.

İnoksan Guillotine Type Dish Washer, With Drainage Pump, INO-BYM102ST

The machine automatically switches to rinsing and provides rinsing with 85°C (185°F) water coming from the boiler.
The Thermo-Stop rinsing feature ensures the sterilization of surfaces washed with 85°C (185°F) water, while waiting for the rinsing water to warm up during the wash.
There is an audible warning system that indicates the end of washing.
Error and fault codes can be seen on the device control panel.
There is a safety system that will stop working when the cover is opened.

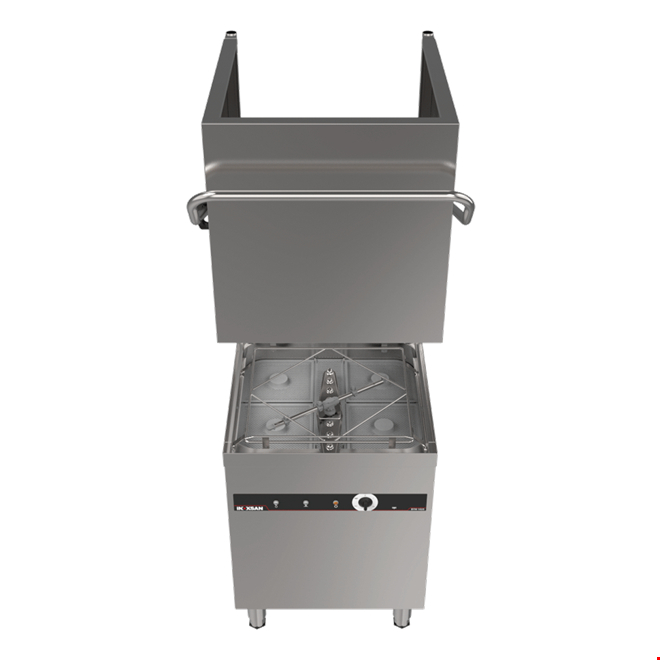

The machine has the ability to wash kitchen utensils with a maximum height of 380 mm.
Cup and plate cassettes are made of heat resistant plastic material.
Washing and rinsing arms and filters are easily removable for cleaning.
As a standard accessory in the device; There are 1 plate and 1 cutlery case measuring 500*500 mm.
Optional optional units: Rinse Motor, Detergent Pump, Polisher Pump

İnoksan Guillotine Type Dish Washing Machine, With Drainage Pump, INO-BYM102ST

*Before using the product, please create a Service Request from our Customer Service.
Technicial Specifications

İnoksan Guillotine Type Dish Washing Machine, With Drainage Pump, INO-BYM102ST

Electric Input: 380-400V 3N 50Hz

Tank Heat Capacity (kW): 2.7

Boiler Heat Capacity(kW):8

Max. Power Consumption(kW): 11.3

Water Consumption(Lt):3,8

Washing Water Temperature (°C): 55

Rinse Water Temperature(°C):85

Water Inlet: 3/4"

Water Pressure(BAR):2-4

Cable Cross Section (mm): 5*4

Number of Programs: 3

Program Period (s): 60/120/180

Plate Capacity(ad/s):1080

Cup Capacity(ad/h):2160

Tray Capacity(ad/h):540

Cassette Capacity (ad/h): 60

Detergent Pump:Optional

Drain Pump: Yes

Polisher Pump:Optional

Rinse Pump:Optional

Dimension(mm): 760*790*1470

Weight(kg):113
