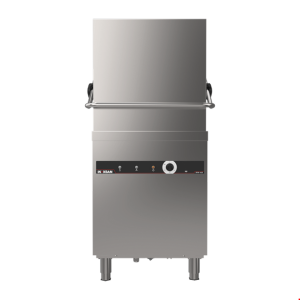

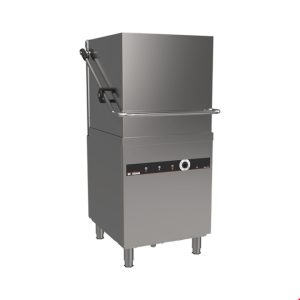

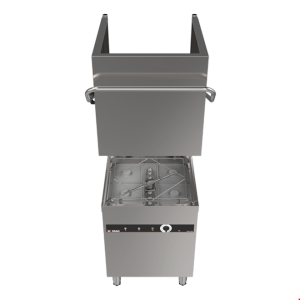

İnoksan Giyotin Tip Bulaşık Yıkama Makinesi, INO-BYM102S

İNOKSAN BYM 102S-Guillotine Type Dish Washing Machine.

Inoksan Guillotine Type Dish Washer, INO-BYM102S

The body of the machine and all parts in contact with water are made of AISI 304 quality 18/8 Cr-Ni stainless steel sheet.
It has 3 different washing programs according to the type of dish and the degree of soiling.
Washing - rinsing times and temperatures can be changed according to the user's preference from the electronic card service menu.

Inoksan Guillotine Type Dish Washer, INO-BYM102S
There is a safety system that will stop working when the cover is opened.
The machine has the ability to wash kitchen utensils with a maximum height of 265 mm.
Cup and plate cassettes are made of heat resistant plastic material.
Washing and rinsing arms and filters are easily removable for cleaning.
As a standard accessory in the device; There are 1 plate, 1 cutlery, 1 glass case with the dimensions of 500*500 mm.
Water Inlet ¾
Water Inlet Pressure: 2-4 BAR
Heat Capacity:
Tank: 2.8 Kw
Boiler: 8 Kw
Max. Power Consumption: 11.4 Kw

Inoksan Guillotine Type Dish Washer, INO-BYM102S

Rinsing Water Consumption: 3 lt/cassette
Electric Input: 380-400V 3N AC 50-60hz
Cable Cross Section: 5*4 mm
Capacity:
Plate Capacity: 1040 Pcs/h
Cup Capacity: 1625 Pcs/h
Dimensions: 740*730*1580 (lid closed) mm / 740*730*1925 (lid open) mm
Net Weight: 113 kg

Inoksan Guillotine Type Dish Washer, INO-BYM102S
