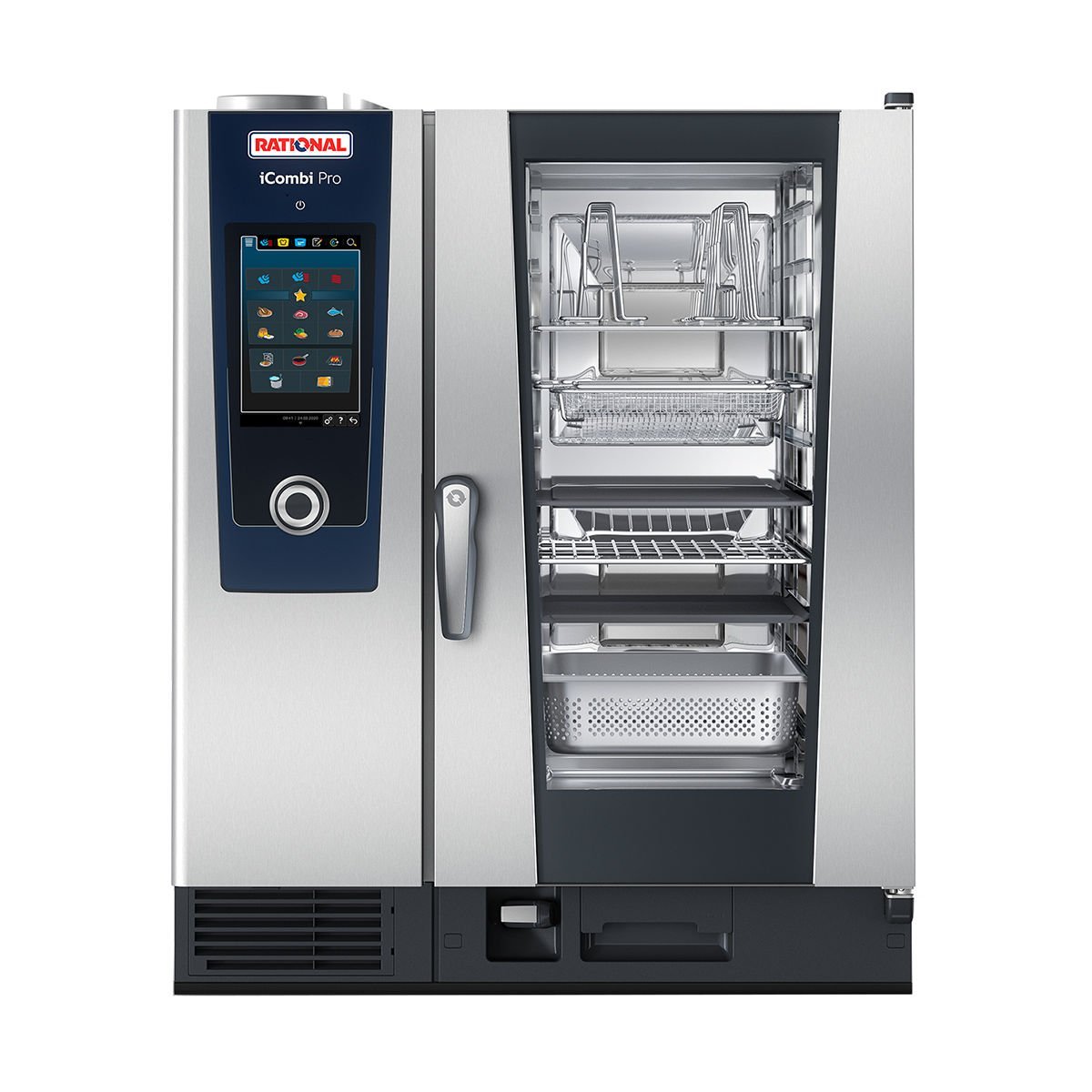

Rational iCombi Pro 101G Kombi Fırın, 10 GN 1/1, Gazlı

smart assistant

iDensityControl

The iDensityControl system is the intelligent climate management of the iCombi Pro unit. sensors, high
performance heating system and fresh steam generator as well as active dehumidification function
Thanks to the cooperation, the appropriate cooking cabinet climate is always available. smart weather
circulation ensures the best energy transfer into the food. So eat high
Exceptional efficiency, homogeneity and minimum energy consumption are ensured in its quality.

iCookingSuite

iCookingSuite is the smart cooking system in the iCombi Pro unit. The user initially
Cooking by choosing between 7 operating modes and/or 4 cooking methods depending on the material
determines the method. The desired cooking result is also specified by the user. unit, redness
recommends cooking level and cooking temperature settings. Smart sensors measure the size of meals,
detects quantity and condition. Rational icombi pro.

rational icombi pro

Depending on the stage of the cooking process
All important cooking processes such as temperature, cooking chamber climate, air velocity and cooking time
parameters are adjusted second to second. In the best possible quality and in the shortest time possible
the desired result is achieved.

If you want, you can intervene in the cooking process and result in cooking.
You can make changes to it. At any time, the user can enter the iProductionManager mode or
can switch to manual mode. With iCookingSuite, it's easy and easy to control.
Saving time, material and energy in standardized food quality
you can.

iProductionManager

iProductionManager intelligently and flexibly organizes the production process. same products to this
being able to prepare on different shelves at the same time, optimum food order and cooking processes
inspection is included. Putting or removing dishes with iProductionManager alerts
Provides support during

Bones (2 per layer) free according to kitchen process
can be positioned or Rational icombi pro can be set to a certain target time. In accordance with this
iProductionManager organizes the food order and automatically adjusts the correct settings.
The user determines whether the food is cooked according to energy saving or time saving.
Simple inspection activities are eliminated, saving uptime and energy.

iCareSystem

iCareSystem is the intelligent cleaning and descaling system of the iCombi Pro unit. Current
detects the level of soiling and scaling and provides ideal cleaning among 9 cleaning programs.
recommends the level and also the amount of chemical. Ultra-fast intermediate cleaning iCombi Pro
cleans in just 12 minutes, all cleaning programs are unattended overnight
executable.

iCareSystem with low consumption of water, energy and phosphate-free care products
It is particularly economical and environmentally friendly. So your iCombi Pro unit is free of charge for you.
It is always hygienically clean with minimum cost, without the need for

Unit identification and function specifications

Intelligent functions

• Intelligent climate management, humidity measurement with percent precision, humidity adjustment and humidity control
• The actually measured humidity in the cooking cabinet can be adjusted and switched on
• The dynamic air circulation in the cooking cabinet is intelligently controlled with 3 high-performance fan wheels, which can be changed intelligently with 5 fan wheel speeds.
  and manually programmable
• Defined desired result, eg. cooking with automatic adaptation of cooking steps to achieve browning and cooking degree, safe and efficient
  intelligent adjustment of processes. Independent of user, material size and loading quantity
• Monitoring and calculation of browning down to the second based on the Maillard reaction to reproduce optimum cooking results
• Intervene in smart cooking processes or switch from iCookingSuite to iProductionManager for maximum flexibility
• The smart cooking step for baking bakery products
• 1,200 cooking programs with up to 12 steps can be programmed individually, intuitively with the drag-and-drop function.
• Easy transfer of cooking programs to other cooking systems via USB flash memory or secure Cloud connection with ConnectedCooking
• Automated, intelligent planning and control tool for optimum organization of many cooking processes and mixed loads
  iProductionManager. Automatic closing of planning gaps. Target to start or end cooking of food at the same time
  automatic time or energy optimization of cooking and planning by entering time.
• Automatic restarting and optimum termination of the cooking process after power outages of less than 15 minutes
• The intelligent cleaning system recommends cleaning programs and the required amount of cleaning agent based on the degree of contamination of the cooking system
• Display of current cleaning status and descaling status
• Condensing hoods (accessory), with adaptive suction power and transmission of service messages.

Cooking functions

> Powerful steam generator for optimum steam power, even at low temperatures below 100°C
> Power-Steam function: high steam power can be selected for Asian applications
> Maintenance-free, integrated oil drain system that does not require an additional oil filter
> Cool Down function with additional rapid cooling with selectable water spray for rapid cooling of the cooking cabinet
> Core temperature sensor with 6 measuring points and automatic error correction for incorrect insertions. Optional for soft or very small food
positioning aid (accessory)
> Delta T cooking for very careful cooking with minimum waste
> Water amount in 4 steps between 30 °C – 260 °C for full humidification, hot air or a combination of steam and hot air
adjustable
> Digital temperature display can be set in °C or °F, setpoint and actual value display
> Digital display of cooking chamber humidity and time, display of desired and actual values
> Time format can be set to 24-hour format or am/pm
> 24-hour real-time clock with automatic summer/winter time conversion in conjunction with ConnectedCooking
> Automatic start time preselection with date and time setting
> Integrated hand shower with automatic retraction system and adjustable spray pattern as shower and single jet.
> Energy-saving, long-life LED with high color reflectance in the cooking cabinet for rapid detection of food status
lightings
> Free call center (ChefLine) for technical and application support questions

Operational and operational safety

> Electronic safety temperature limiter for steam generator and warm air heater
> Integrated fan brake
> Maximum 73 °C contact temperature of the cooking cabinet door
> Use of Active Green cleaning tablets and care tablets (solid cleaning agents) for optimum occupational safety
> HACCP data storage and transfer via USB or optionally recording and management with cloud-based ConnectedCooking networking solution
> Tested to national and international standards for unattended use
> Maximum shelf height 1.60 m, rail distance 62 mm when using RATIONAL mobile tray stand with 20 shelves(USPHS approval revoked)

Network connection

> Integrated, IP-protected Ethernet interface for wired connection to the cloud-based networking solution ConnectedCooking
> Integrated, WLAN interface for wireless connection to the cloud-based networking solution ConnectedCooking
> Integrated USB interface for local data exchange Rational icombi pro
> Central unit management, recipe, product basket and schedule management, HACCP data management, with cloud-based networking solution ConnectedCooking,
maintenance management

Cleaning and maintenance

> Automatic cleaning and maintenance system for cooking cabinet and steam generator independent of water mains pressure
> 9 cleaning programs (even at night) for unattended cleaning, with descaling and automatic cleaning in the steam generator
> Ultra-fast cleaning in just 12 minutes for virtually uninterrupted, hygienic production Rational icombi pro
> Automatic safety routine ensures a cleaning agent-free cooking cabinet after power failure, even after cleaning interruption
> Use of Active Green cleaning tablets and Care tablets that do not contain phosphate and phosphorus
> Rear-ventilated 3-layer glass cooking chamber door, special heat-reflecting coating and swivel glasses for easy cleaning
> Internal and external materials DIN 1.4301 stainless steel, seamless hygiene cooking cabinet with rounded corners and optimized air circulation
> Simple and safe exterior cleaning with glass and stainless steel surfaces, as well as against splashing water from all directions thanks to the IPX5 protection class
protection
> Automatic cleaning control option via the cloud-based networking solution ConnectedCooking

Control

> High resolution 10.1” TFT color display and intuitive swipe control for easy, intuitive operation
capacitive touchscreen with symbols
> Gives audible and visual warnings when user intervention is required
> Central dial with push function for intuitive selection and confirmation of entries
> Over 55 languages can be set for user interface and help function
> The main cooking preferences of the country-specific cuisine can be selected independently of the unit language used. In addition, another country cuisine
selectable
> Cooking parameters specially adapted for international or country-specific dishes can be selected independently of the set unit language and
bootable Rational icombi pro
> Comprehensive search function in all cooking processes, application examples and settings
> Context-sensitive help, always showing help content related to the currently on-screen content
> Possibility to launch application examples directly from help
> Simple cooking process selection using 7 operating modes and/or 4 cooking methods
> Cockpit function for displaying information about the processes in the cooking process
> Personalization and management of user profiles and access rights to prevent usage errors
> Interactive messages for cooking processes, action requests, smart functions, warning information via Messenger

Installation, maintenance and environment

> Professional installation by RATIONAL certified technicians is recommended
> Permissible fixed waste water connection in accordance with SVGE
> Adaptation to the installation location (altitude above sea level) with automatic calibration
> Operation possible without water softening system and additional manual descaling system
> Wall mounted installation *
> Service diagnostic system with automatic display of service messages, self-test function for active control of unit functions
> Remote diagnosis via ConnectedCooking by certified RATIONAL service partners
> 2-year RATIONAL warranty including parts, work and arrival **
> Regular maintenance is recommended. Maintenance by RATIONAL service partners according to manufacturer's recommendations
* For details, see installation or designer manual
** The provisions of the manufacturer's warranty statement apply, see fig. www.rational-online.com

Optional options

> MarineLine – Ship model
> SecurityLine – Security/prison model
> MobilityLine – mobile model
> HeavyDutyLine – Extremely durable model
> Integrated oil drain
> Energy optimization system connection
> Connection to operational monitoring (potential-free contacts)
> Protection for the control screen
> Door safety lock
> Model without WLAN hardware
> Lockable control screen
